GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable

Name: GJXH GJXCH 1246812 Cores FTTH flat indooroutdoor fiber optic cable Drop Cable
Brand: ODM/OEM
Price: 27.00 USD

China GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable wholesale

Model Number : GJXFH

Place of Origin : China

Brand Name : ODM/OEM

Certification : ISO9001-2000, RoHS, CE

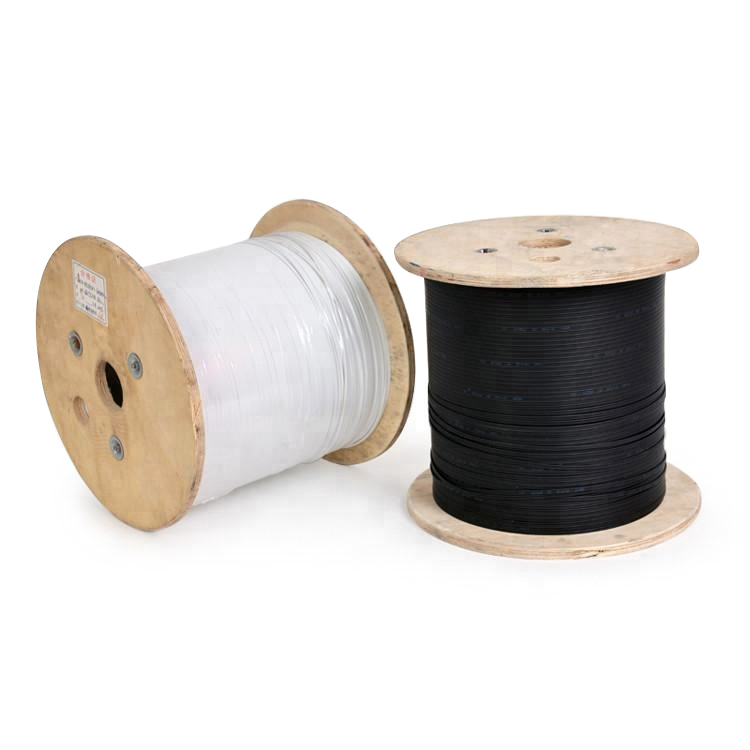

Packaging Details : 2KM/PLYWOOD DRUM
DRUM SIZE: 40*40*37cm
WEIGHT: 21KG/DRUM

Supply Ability : 100000 Kiloampere/Kiloamperes per Week

MOQ : 20 kilometers

Price : $27.00/kilometers 20-49 kilometers

Payment Terms : T/T, Western Union

Type : Outdoor Fiber Optic Cable, Cat 1

Number of Conductors : 1

Fiber count : 1~12

Cable weight : 10kg/km

Cable diameter : 5.0*2.0mm

Fiber Brand : Corning, OFS, YOFC

ROHS : YES

Cable color : White, black

Jacket Material : LZSH

Application : FTTH FTTB FTTX Network

Contact Now

Products Description

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable

FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference thancommon indoor fiber cables and it's ideal for indoor cabling, end users directly cabin, and access network.

Features

Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance
Meet the requirement of thunder-proof, anti-rodent or waterproof
Good to use for fiber to the home last mile solution

Application

Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building

Technical parameters

Cable type

OD(mm)

NominalWeiNominalWeight(kg/km)ght(kg/km)

tensile strength(N)

Crush Resistance(N/100MM)

Bending Radius(mm)

Short-term

Long-term

Short-term

Long-term

Dynamic

Static

GJYXFCH-1Xn

(2.0±0.1)*( 6.2±0.3)

23.6

600

300

2200

1000

20D

15D

GJYXFCH-2Xn

(2.0±0.1)*( 6.2±0.3)

23.6

600

300

2200

1000

20D

15D

GJYXFCH-3Xn

(2.0±0.1)*( 6.2±0.3)

23.6

600

300

2200

1000

20D

15D

GJYXFCH-4Xn

(2.0±0.1)*( 6.2±0.3)

23.6

600

300

2200

1000

20D

15D

Storage/Working temperature(℃)

-20~+60

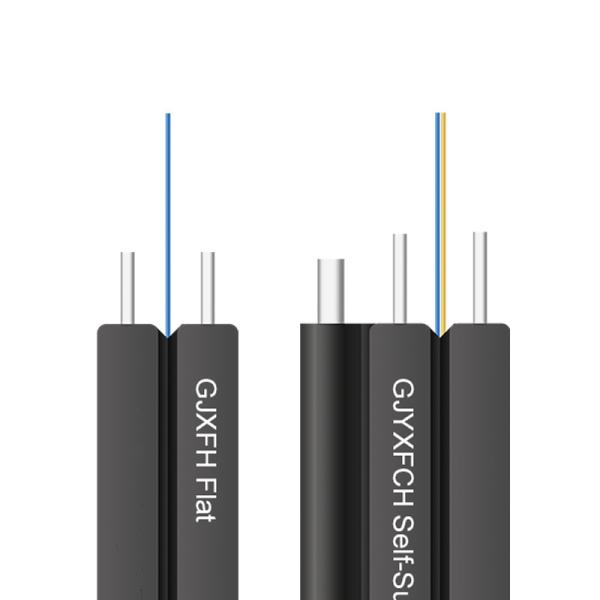

FTTH DROP CABLE

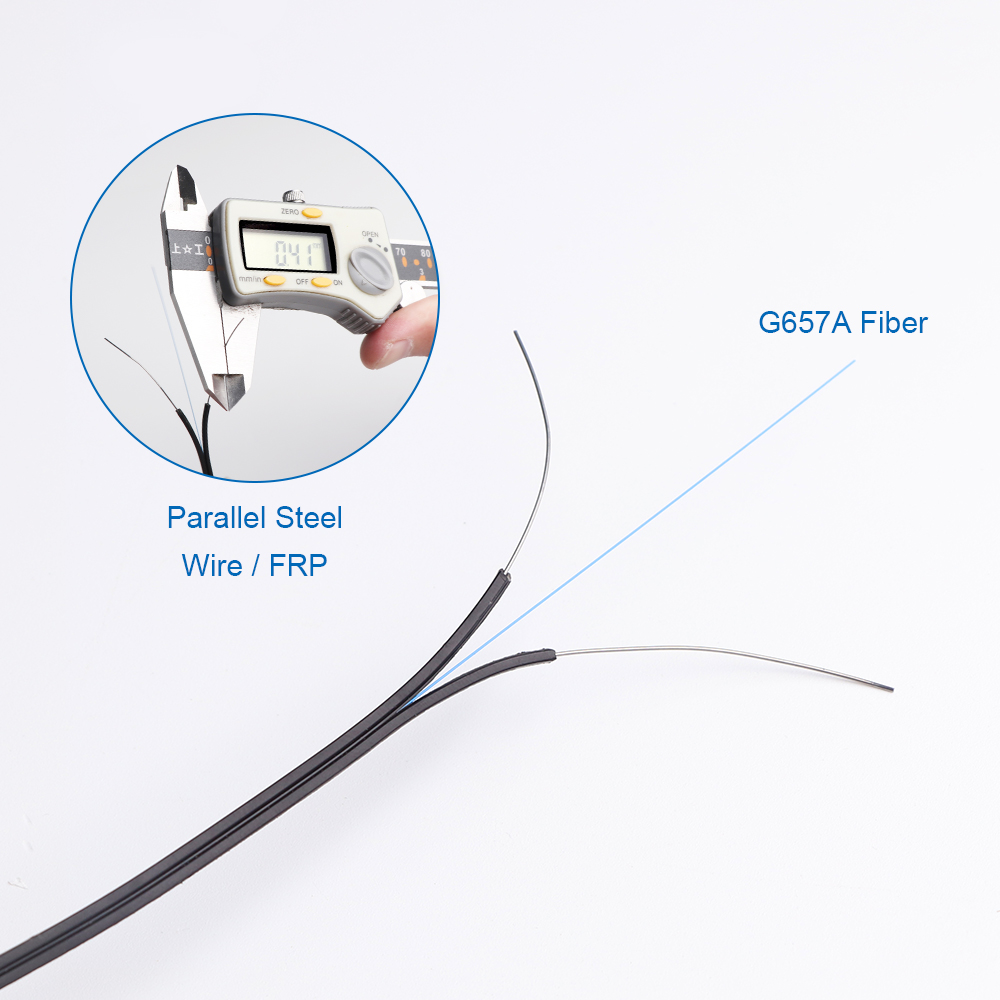

The optical fiber unit is positioned in the centre. Two steel wires or Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.

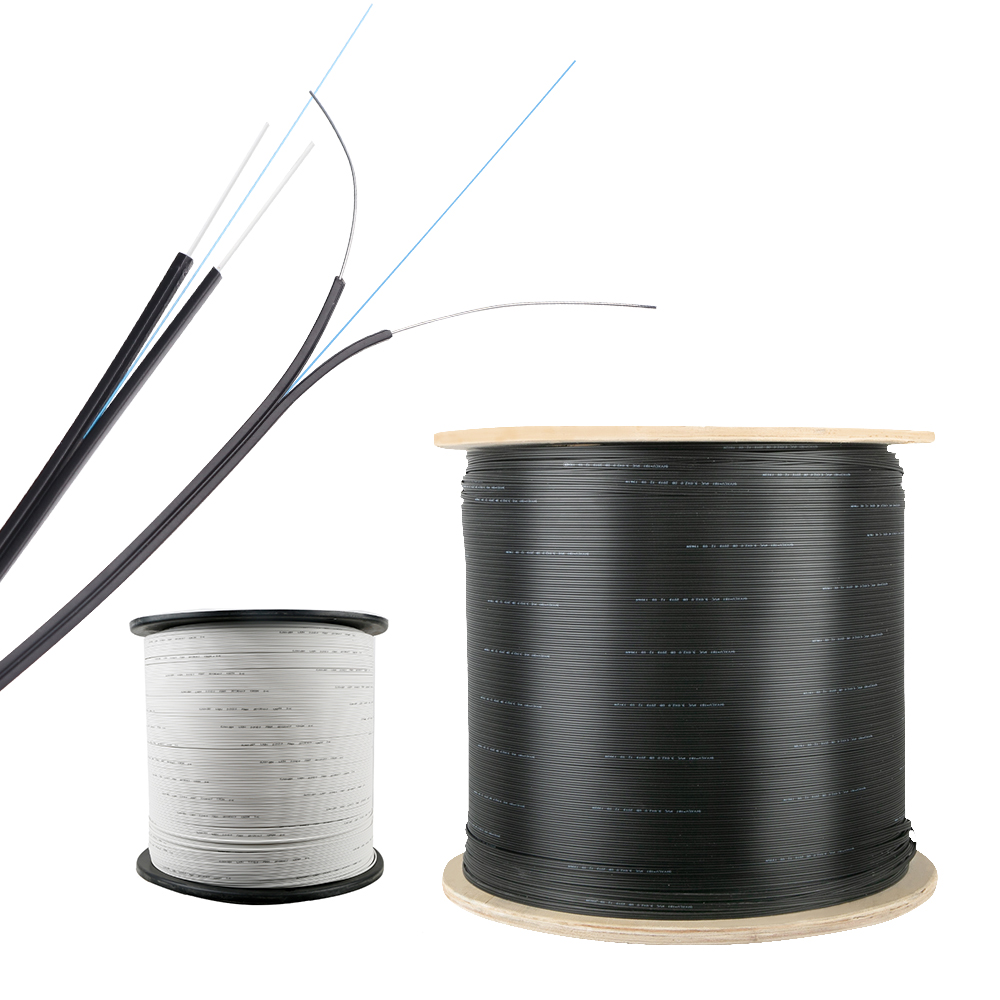

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable Images
