Customized SC Mini Optical Connector IP68 Waterproof Reinforced

Name: Customized SC Mini Optical Connector IP68 Waterproof Reinforced
Brand: ODM/OEM
Price: 1.00 USD

China Customized SC Mini Optical Connector IP68 Waterproof Reinforced wholesale

Model Number : Waterproof Fast Connector for Huawei

Place of Origin : China

Brand Name : ODM/OEM

Certification : RoHS, CE

Packaging Details : Individual bag or according to customer's request

Supply Ability : 200000 Piece/Pieces per Quarter

Price : $1.00 - $6.50/pieces

Payment Terms : T/T, Western Union

Type : Fiber Adapter & Connectors

Use : FTTA

Model name : Waterproof Fast Connector for Huawei

Cable type : Flat drop cable 2.*3.0mm,3.0mm ,5.0mm

Waterproof : IP68

No. of Fiber : 1

Mechaincal Durability : 500matings

Fiber type : Singlemode

Application : FTTX

Inserion Loss : <0.2db

Return Loss : >55db

Material : PEI

Contact Now

Product Description

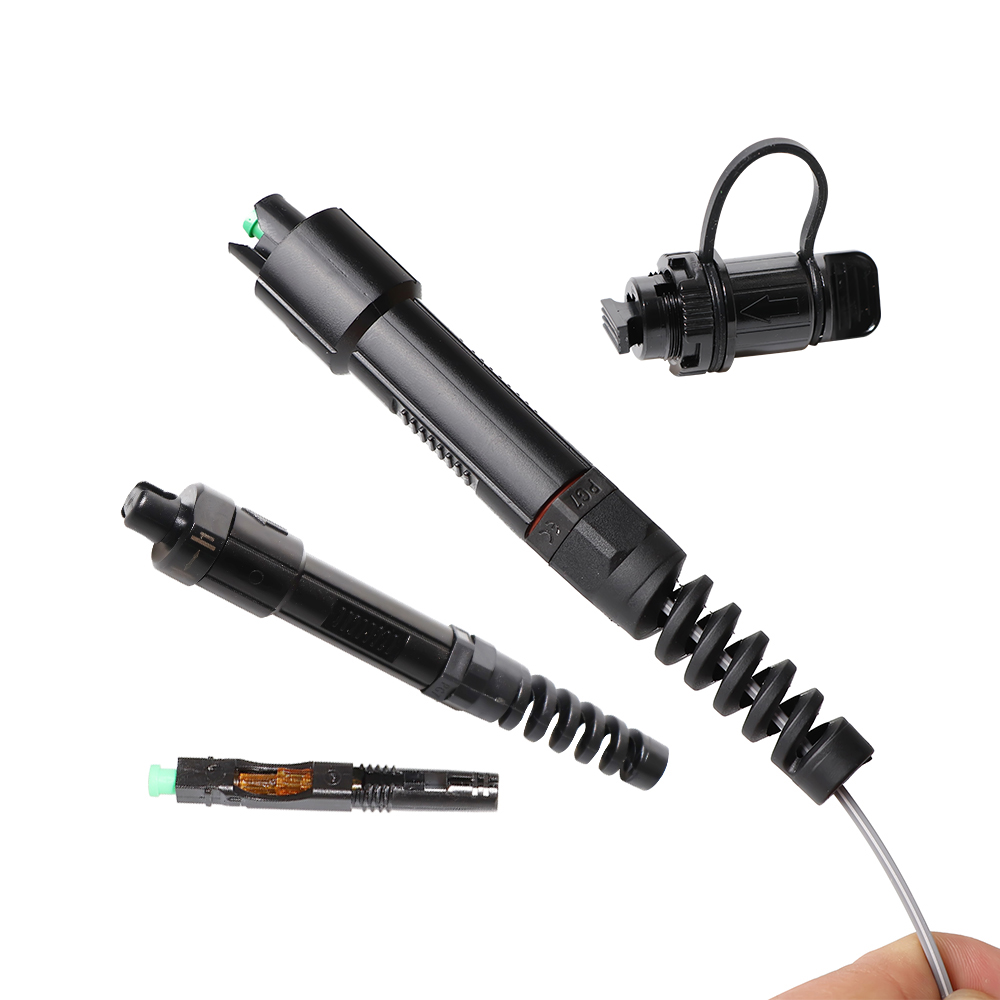

IP68 Mini SC Waterproof Kit Reinforced Waterproof Optical Connector for Huawei

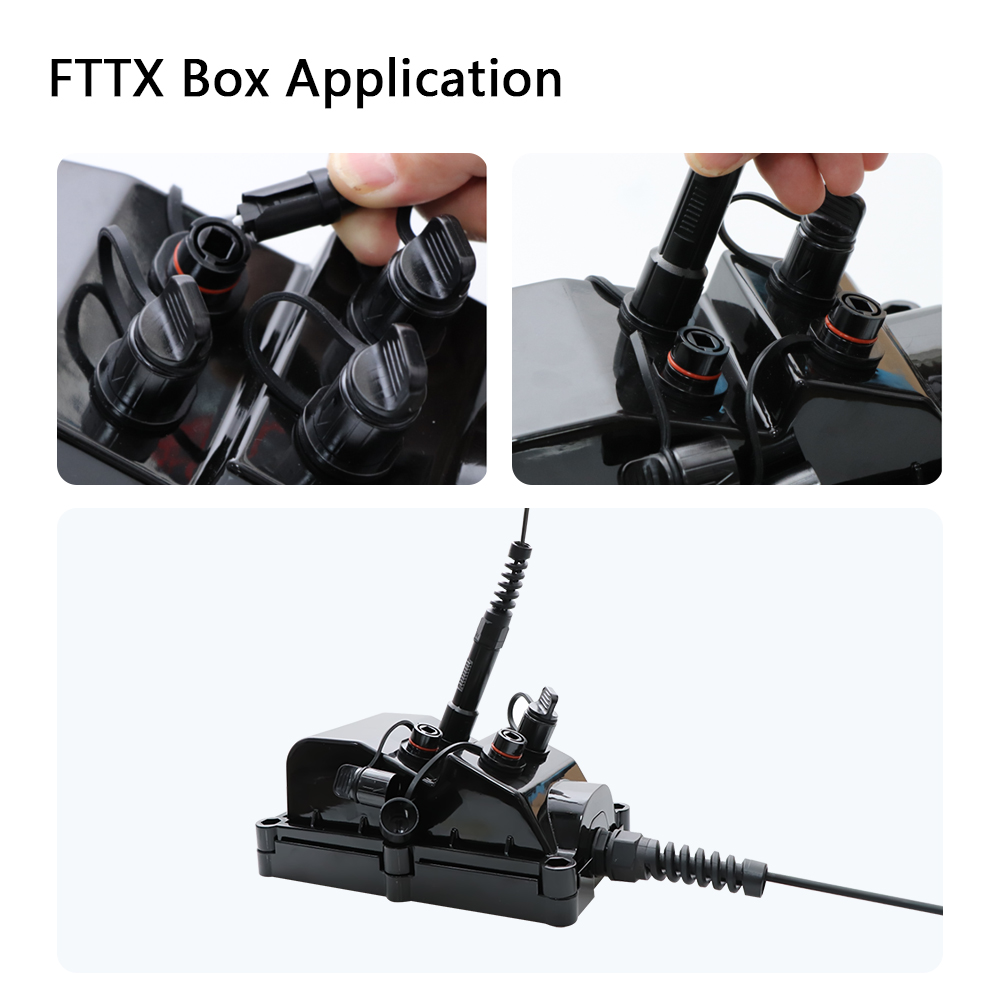

Applications

1. Fiber optic communications in harsh outdoor environments.

2. Outdoor communications equipment connection.

3. Waterproof fiber equipment SC port.

4. Remote wireless base station.

5. FTTX wiring projiect.

Features

1. Compact size,easy to operate,durable.

2. Easy connection to hardended adapters on terminals or closures.

3. Reduce welding,connect directly to achieve interconnection.

4. IP68 water and dust protection.(1M,1 hour)

5. Spiral clamping mechanism ensures long-term reliable connection.

6. Guide mechanism,can be blinded with one hand,simple and quick,connect and install. 7. Low operating temperature: - 10 ℃ ~ + 70 ℃ 8. Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters 9. Factory or field installation,Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.

Customized SC Mini Optical Connector IP68 Waterproof Reinforced

Item	Parameter
Cable Scope	Accepts 2.*3.0mm,3.0mm ,5.0mm Cable Diameters
Size	5197.55mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
Drop Test	IL ≤ 0.3dB

Main Products

Our Company

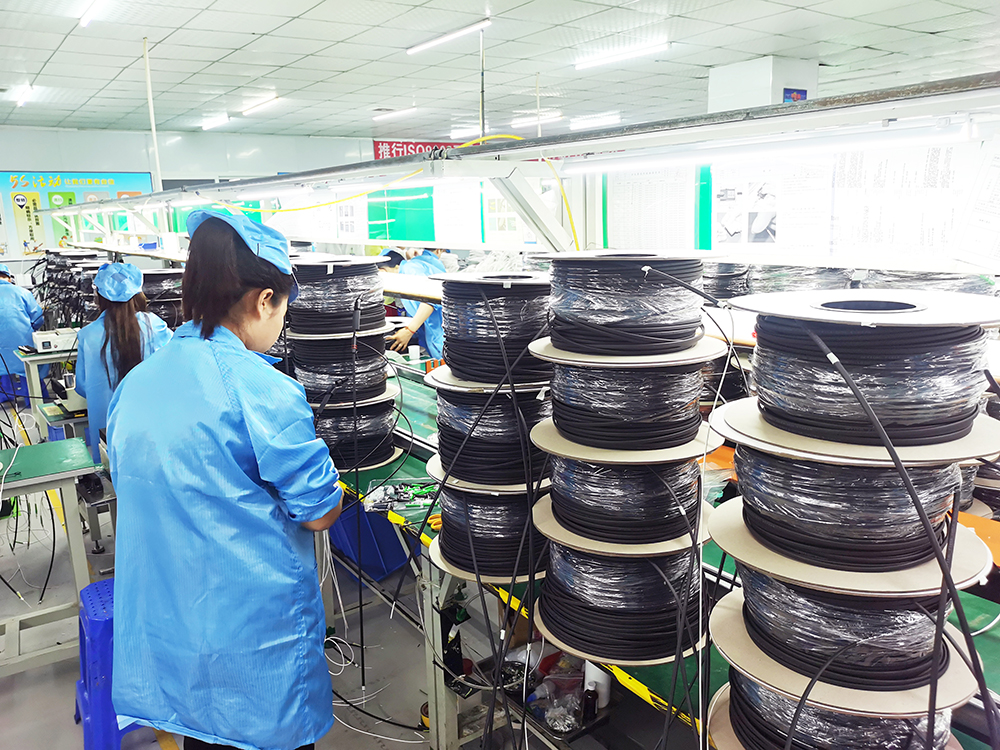

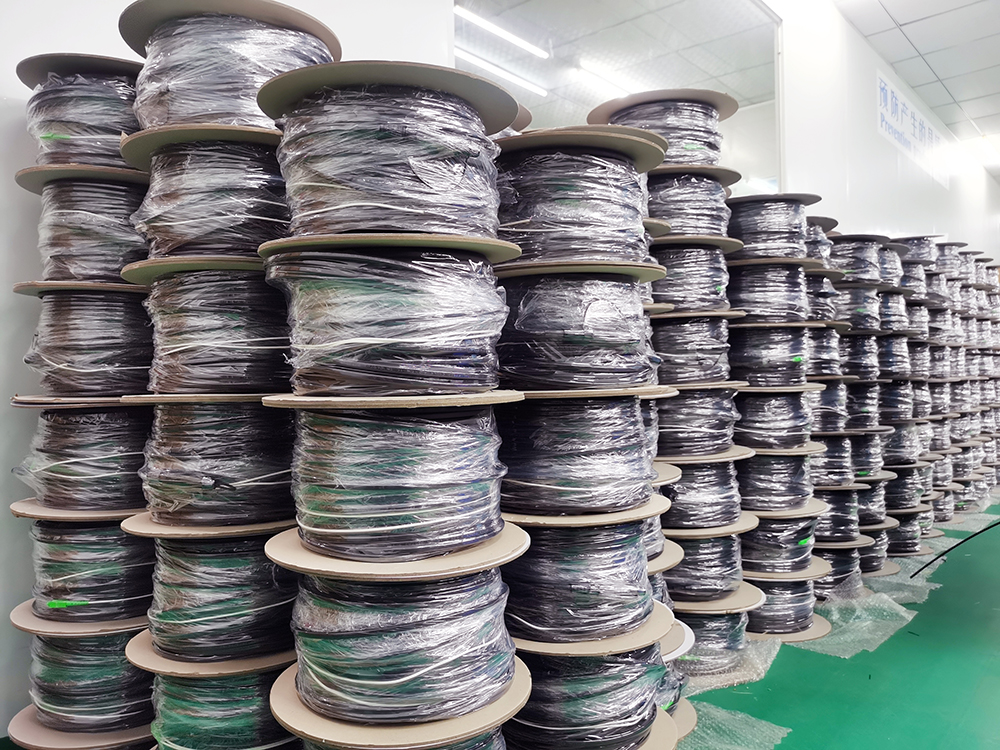

We are a leading company in developing and manufacturing advanced fiber optic products,mainly make fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. With years of experiences in the fiber optic industry, our factory is fully equipped over 5000 square meters and more than 30 non dust production lines .About 250 well-trained staff and engineers are contributing to our proud products. We have 5 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 15 production lines for standard jumper and 8 PLC Splitter production lines. The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on. All of our optical products are RoHS compliant and also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, our fiber optic is looking forward to cooperate with you.
