SC APC UPC Fiber Optic Connector Quick With RoHS ISO9001 Compliant

Name: SC APC UPC Fiber Optic Connector Quick With RoHS ISO9001 Compliant
Brand: ODM/OEM
Price: 0.69 USD

China SC APC UPC Fiber Optic Connector Quick With RoHS ISO9001 Compliant wholesale

Model Number : SC/APC UPC Fast Quick Connector

Place of Origin : China

Brand Name : ODM/OEM

Certification : RoHS/ISO9001

Supply Ability : 100000 Piece/Pieces per Day

MOQ : 100 pcs

Price : $0.69/pcs

Payment Terms : T/T, Western Union

Product Name : SC/APC UPC Fast Quick Connector

Insertion Loss : ≤0.3

Color : Blue, Purple, Aqua, Green,Beige

Connector type : SC/FC/LC/ST/MTRJ/MU Ect

Application : FTTH

Working temperature : -40℃ ~ +85℃

Quality Control : 100%

warranty : 1 Year

Factory : Yes

Contact Now

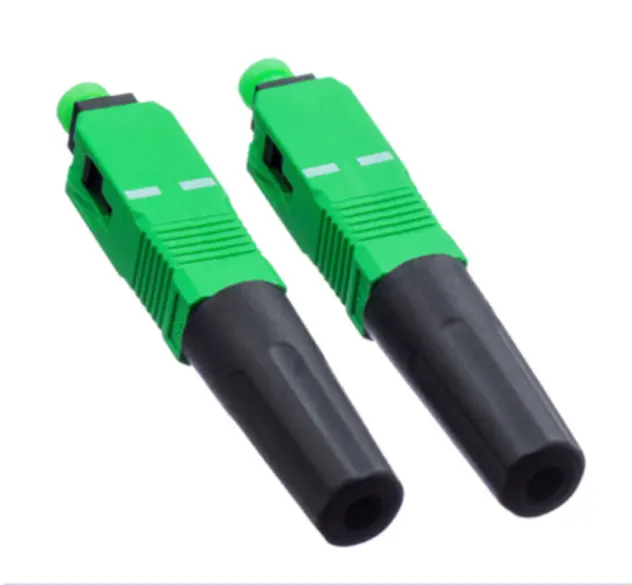

High Quality SC/APC UPC Fiber Optic Fast Quick Connector from TTI Fiber

Product Description

Item	fast connector
Cable Scope	0.9mm, 2.0mm, 3.0mm round cable and 3.0 x 2.0 mm drop cable
Length	45mm
Coating Diameter	250μm
Mode	SM
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(1310nm & 1550nm)
Return Loss	≤ -50dB for UPC, ≤ 55dB for APC
Success Rate	>98%
Reusable Times	>5 times
Tighten Strength of Naked Fiber	>5 N
Tensile Strength	>30 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.3dB
Mechanical Durability(500 times)	IL ≤ 0.3dB
Drop Test	IL ≤ 0.3dB

Functions and features :

·Low insertion loss ,high return loss;

·Reliable optical performance;

·Good connection stability;

·Convenient for field installation;

·Installs fast,Operates easy ;

·Low cost.

SC APC UPC Fiber Optic Connector Quick With RoHS ISO9001 Compliant
